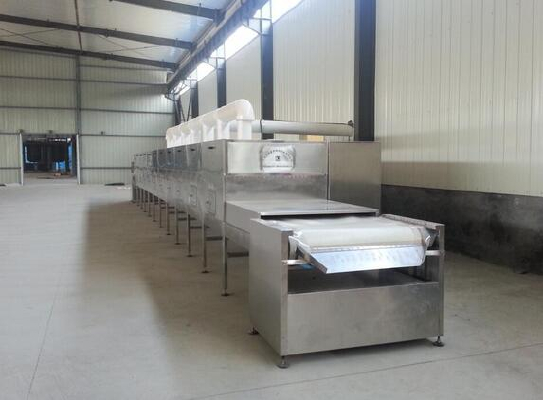

Microwave drying sterilization equipment used in red dates: Xinjiang jujube, jujube, red dates, Hetian Jade Jujube, jujube, jujube jujube Ruo Qiangjun products drying, cleaning and sterilization processing. Microwave drying equipment is a new type of red dates red dates processing equipment, energy saving and environmental protection, high efficiency, can be reached by microwave drying and disinfection dried red dates, dried color, nutrition will not change, good taste, is the first manufacturer of processing equipment for processing red dates. And, the device can also be used as other food drying equipment, the real realization of a multi-purpose machine.

Processing technology of microwave red dates drying equipment:

Drying and grading before treatment, high pressure cleaning, cleaning brush, bubble vibration, Lishui microwave drying and sterilization and cooling and drying again after grading and packing.

Microwave drying of jujube product quality:

Moisture content of 28% dry to about 10%, microwave drying of large red dates, date type full, red dates color constant, extend shelf life.

The big red dates piece produced by microwave, crisp, good taste, color and red dates, most of which have a market value.

Characteristics of microwave drying equipment:

1, heating uniformity: due to the microwave effect on water molecules, so the high water content of the part, the absorption of microwave power than the lower part of the water content. This is the characteristics of selective heating, the use of this feature can be uniform and uniform heating and drying.

2, high efficiency and energy saving: microwave is directly effect on material, so there is no additional heat loss, the air in the furnace and the corresponding containers are not so hot, high thermal efficiency, the production environment is improved obviously, compared with the far infrared heating can save 30%.

3, high efficiency, short time: because the microwave heating process without heat conduction, so microwave from different directions through the object into the object, from the inside to the outside to get the material to be dried evenly in a very short period of time, can effectively shorten the drying time.

4, easy to control: compared with the conventional method, microwave is simple and easy to operate; microwave power can be adjusted, the transmission speed can be adjusted.

Technical parameter:

1, input power: three-phase five wire 380V 10% 50Hz 1%

2, microwave output power: 30kW (adjustable)

3, microwave frequency: 2450MHz 50Hz

4, rated apparent power: less than 45kVA

5, import and export height: 50mm

6, transmission belt width: 650mm

7, transmission speed: 0.1 ~ 5m/min

8, external dimensions (length * width * height): about 11630 x 1310 x 1668mm

9, work environment: 0 ~ 40 degrees, relative humidity is less than 80%

10, microwave red dates drying equipment output: dry dehydration per hour 30kg

11, in compliance with the 10436-1989 GB workplace microwave radiation hygiene standards

13, in accordance with the mechanical and electrical equipment GB/5226.1-2002 mechanical safety

Application range:

Microwave drying equipment used in red dates: Xinjiang jujube, jujube, red dates, Hetian Jade Jujube, jujube, Ruoqiang Jun jujube jujube products drying, cleaning and sterilization processing. Microwave drying equipment is a new type of red dates red dates processing equipment, energy saving and environmental protection, high efficiency, can be reached by microwave drying and disinfection dried red dates, dried color, nutrition will not change, good taste, is the first manufacturer of processing equipment for processing red dates. And, the device can also be used as other food drying equipment, the real realization of a multi-purpose machine.
